This is one of our 100 home designs that is Expiring Soon - Download Your Copy Today !

FEATURES
4 Bedroom
2 Bathroom
Large Kitchen + Pantry
Large Living
Covered Alfresco Patio
Home Theatre Room



Metric Sizes
Bed 1: 3.1 x 3.3

Bed 2: 3.5 x 3.2

Bed 3: 3.5 x 3.2

Bed 4: 3.5 x 3.2

Theatre: 4.8 x 3.2

Family: 8.2 x 6.5


Areas Metric Sizes
Living: 207.4 m2
Garage: 45.8 m2
Verandahs: 37.3 m2
Total Area: 290.5 m2





Feet & Inches
Bed 1: 10'2” x 11' 1”

Bed 2: 11' 5” x 9' 3”

Bed 3: 11' 5” x 9' 3”

Bed 4: 11' 5” x 9' 3””

Theatre: 15' 8” x 11' 0”

Living: 26' 11” x 21' 5”



Areas Feet & Inches
Living:          2232 Sq. Feet
Garage:          493 Sq. Feet
Verandahs:    401 Sq. Feet
Total Area:   3126  Sq. Feet





Premium Set Of PLANS Includes

Imperial Inclusions:
Floor plan Dimensions in feet and Inches
Elevation Plans in feet and Inches
Electrical Plans in feet and Inches
Window Schedule in feet and Inches
Door Schedule in feet and Inches

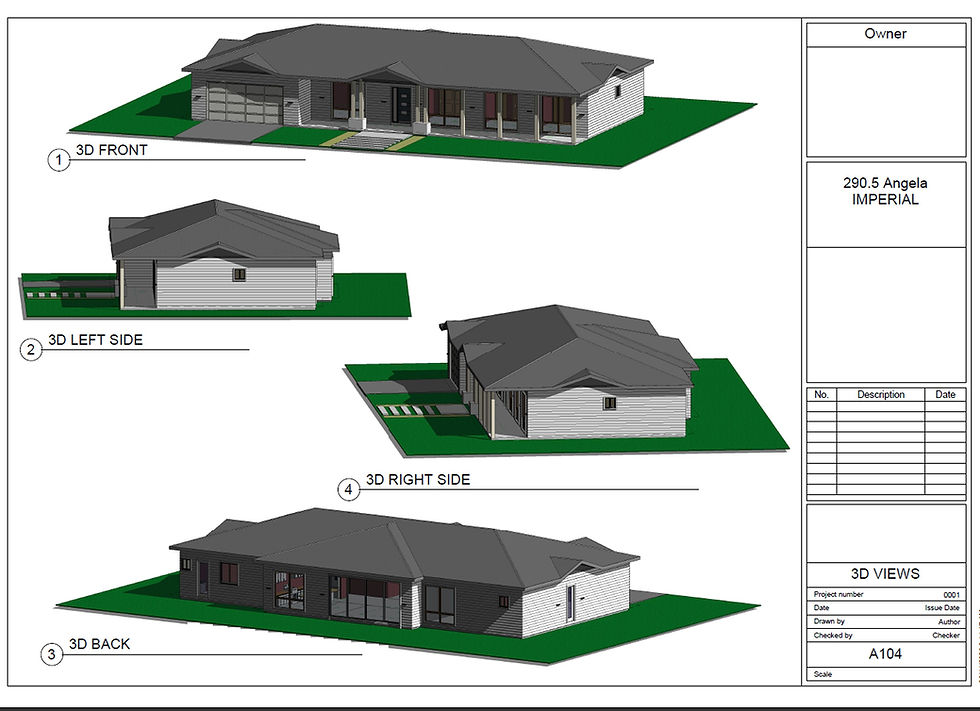

3d Front Render
2d Floor Plan showing furniture positions
Copyright release for building



Metric Inclusions:
Floor plan Dimensions in Metric Sizes
Elevation Plans in Metric Sizes
Electrical Plans in Metric Sizes
Window Schedule in Metric Sizes
Door Schedule in Metric Sizes

Other Inclusions
3d Front Render
2d Floor Plan showing furniture positions
Copyright release for building



There are 2 main sets of plans when building a home one is the concept plans and the second is  full construction plans.



Concept plans.
If you own the concept plans, you have a major advantage when shopping for a builder.
As you can get several builders to compete or bid  for the job and get the best possible price.
This will normally save you many thousands of dollars, compared to using the builders plans as he owns the copyright on his own plans, and it illegal to have other builders bid on his design.
So you are open to legal action for breach of copyright. This can even happen years after the home is complete.
Where as if you own the concept plans, this saves all that risks.

Construction plans.

We have found most builders prefer you to supply the concept plans only, and they supply the full construction plans using your concept plans as a draft design.
The reason is because of buying power.
They normally are affiliated with a number of building material suppliers, and will draw the final construction drawings to meet there building specifications.
All though you will have final say on the building material, they will have a base building specifications that they get the best price for.
The building specifications are an important group of documents which forms part of the building contract.
The specifications  can change from builder to builder and from one city to another depending on availability.

When getting a builder to bid on your concept plans, you should always ask for a building specifications sheet of building material that they have included in the quote.

Owner Builder or DIY Builder

An owner builder is also best to have  concept plans drawn before moving onto full construction plans.
As an owner builder you can use the concept plans to send to building material suppliers and tradesman to get quotes before moving to full construction plans.

Our concept plans are detailed with full plan dimensions so they can quote it fully.
This means as an owner builder you will know the full costs of construction with in a few weeks, and if the project will meet your budget.

If you are over budget you can make the necessary changes, before having the full construction plans drawn saving you time and money.
Also having the full construction costs means you can approach the bank with confidence, knowing that you can finish the home completely.



House Plans - Country Design:290.5 Angela

$199.95 Regular Price
$99.98Sale Price
