Full Construction Plans ( Pre-Drawn Plans No Changes)

  • 3D Front Render
  • Floor Plan Render
  • Floor Plan fully detailed
  • Elevations Plan fully detailed
  • Building Section fully detailed
  • Bracing Plans
  • Electrical Plans
  • Copyright release to build
  • Fully printed on A3 size paper which is ideal for council lodgement and building on site.
  • Pre-Drawn Plans (No Changes)



Plan Features

  • 4 Bedroom
  • 2 Bathroom
  • Large Galley Kitchen
  • 2 Large Living Rooms w/-Home Cinema
  • Covered Alfresco Patio

Plan Sizes

Metric Sizes

Bed 1: 3.6m x 4.2m

Bed 2: 3.0m x 3.6m

Bed 3: 3.0m x 3.6m

Bed 4: 3.0m x 3.6m

Home Cinema: 3.9m x 3.6m

Family: 7.1m x 3.8m

Floor Area: 167 m2

Garage Area: 38.0 m2

Total Area: 229.0 m2



Feet & Inches
Bed 1: 11' 11” x  13' 9”
Bed 2: 9' 10” x 10' 8”
Bed 3: 9' 10” x 10' 8”
Bed 4: 9' 10” x 10' 8”
Home Cinema:12' 10” x 13' 9”
Family:  23' 7” x 12' 8”
Floor Area: 1798 Sq Ft
Garage Area: 409 Sq Ft
Total Area: 2485 Sq Ft





Modify This Plan Only $890

Contact us Here

For any changes you would like

(please tell us the plan number)



Also available Concept Plans $49.95

Concept plans.

If you own the concept plans, you have a major advantage when shopping for a builder.

As you can get several builders to compete or bid  for the job and get the best possible price.

This will normally save you many thousands of dollars, compared to using the builders plans as he owns the copyright on his own plans, and it illegal to have other builders bid on his design.

So you are open to legal action for breach of copyright. This can even happen years after the home is complete.

Where as if you own the concept plans, this saves all that risks.

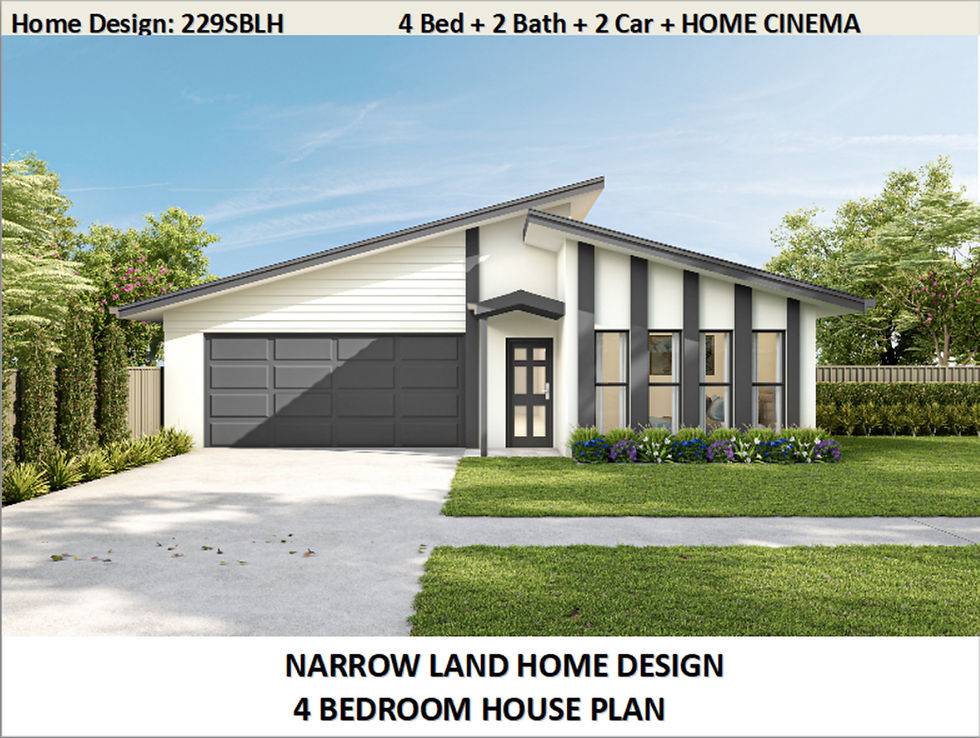

House Plan: 229SBLH - For Sale

$1,595.00 Regular Price
$595.00Sale Price
USA feet and inches or Australian Metric
  • Plans are delivered by email in PDF  Format ready for printing or forwarding to suppliers for quotes
